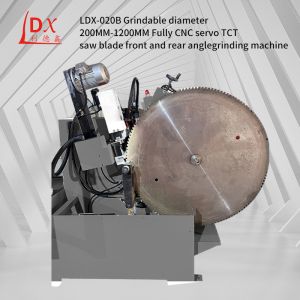

LDX-020B Fully CNC servo feed saw blade grinding machine
TCT saw blade grinding method:
1,Saw blade sharpening is just a rough grinding and processing of the
front corners of the saw teeth. Now there are many such grinding
factories and handicraft workshops, specializing in the grinding of
alloy saw blades.
2,The side accuracy of the saw blade has a large deviation, so the
saw path will become larger, the surface will be rough, and the
burrs will be large. The stress adjustment must be done more than 2
times.
3,If it can be adjusted within the standard range (this standard
refers to the saw blade production standards according to Japan
Kanebo Co., Ltd., that is, the side accuracy of the saw blade),
then enter the next process; otherwise, if grinding is required,
try your best again. Calibrated and precision ground.
4,Be careful when using it! Grinding of the saw blade is carried out
in two steps. First, a 200-grit diamond grinding wheel imported
from Japan is used for rough grinding, and then a 600-grit grinding
wheel is used for more precise grinding.
How to use automatic gear grinding machine:
1,First click on the control panel and press the front angle and then
the flat angle to enter the interface for grinding the teeth. Press
the front corner and then press the left and right teeth to enter
the interface for grinding the left and right teeth. Click into the
interface, then push the saw blade to the middle of the needle
puller, align the angle and lock the saw blade to start. Work.
2,Press reset
3,Press to extract the tooth (click twice, click once, pause, then
click the second time and do not press too fast)
| Main Technical Parameters : |
| Range of external diameter of processing:￠200-￠1200mm |
| Inner bore of saw blade:￠10-220mm |
| Thickness of saw web (steel plate):1-12mm |
| Pitch range:7-100mm |
| Tooth face angle:5°~+30° |
| Tooth top dorsal angle:6-45° |
| Tooth left/right gradient: Tooth top/tooth face 45° |
| Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min |
| Grinding speed:0.5-6mm/s |
| Working speed: Max. 20 teeth/min |
| Grinding wheel dimensions (outer diameter * bore):
(￠125mm*￠32mm*1mm) |
| Negative chamfer grinding: -27° |
| Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s |
| Coolant pump flux:501/min |
| Coolant cylinder volume: 85L |
| Total power: 2.2KW |
| Voltage:three-phase 380v |
| Total weight of equipment:800KG |
| Appearance(Long*Width*Height):1500X1200X1800mm |
|
| Technical features: |
| This machine is designed in reference to the features of domestic
and foreign similar types, which absorbs and analyzes the
advantages of the same type and improves the functions to some
extent at the same time. |
|
| 1. Preset many groups of tooth types and one-key multifunctional
operation. |
| 2. Trapezoid flat teeth can be finished at a time, features CNC
grinding and arbitrary tooth types, and can improve the efficiency
by 3 times; due to the adoption of improved tooth extraction
operation, the accuracy is improved, and the service life is
prolonged. |
